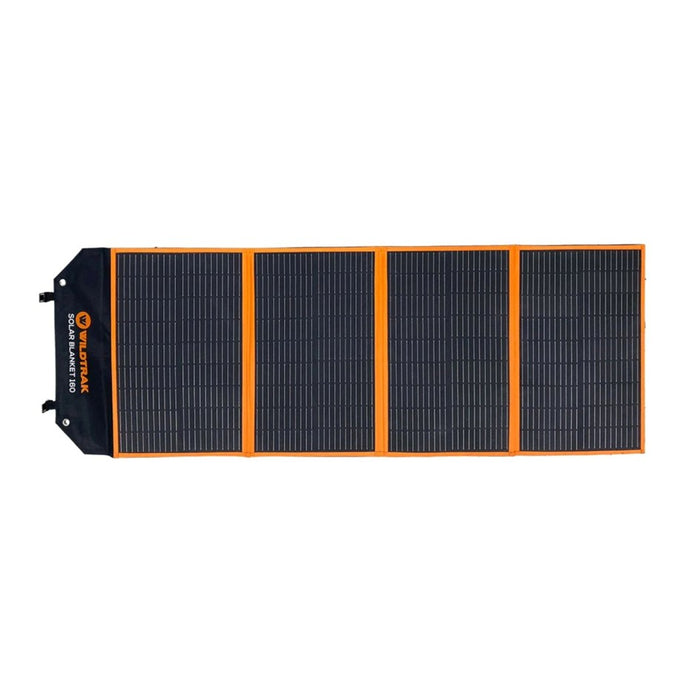

WILDTRAK FOLDING SOLAR BLANKET 160W EFTE COATED WITH STAND

Description:

High-Efficiency 160W Output Reliable solar power to charge batteries, power stations, and devices.

Features:

• A-Grade Monocrystalline Solar Cells
• ETFE coating for maximum strength and durability
• IP65 waterproof rating

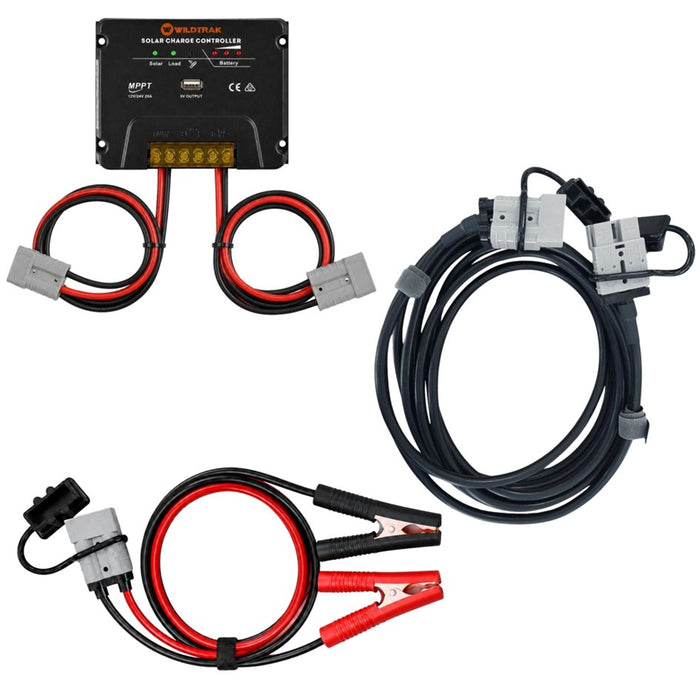

• MPPT Regulator
• Compatible with Lithium LiFePO4, AGM and GEL Batteries and DCDC chargers
• Can be operated with supplied MPPT or can be used in conjunction with most DCDC chargers and controllers, (we recommend that you consult your controller instructions as brands vary)
• Includes battery clips and 5m cable with Anderson style plugs

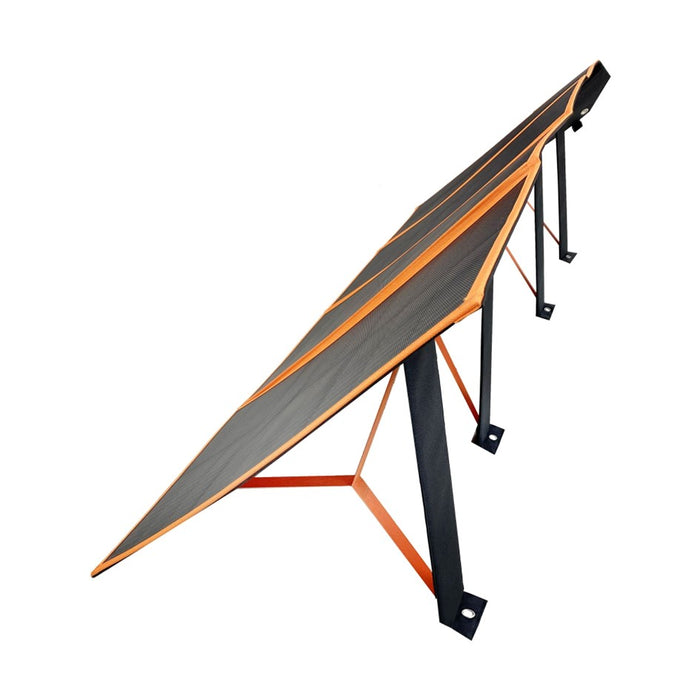

• Foldaway legs which provide angled optimum solar power harvesting

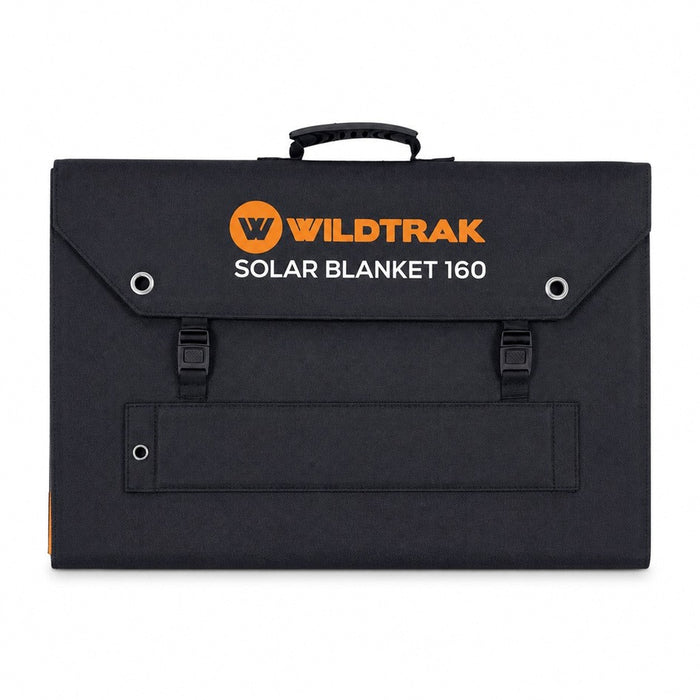

• Folds up into a compact carry bag with front pocket for storing leads and accessories
• 12 month warranty

Specifications:

• Max. Power at STC (Pmax): 160w
• Open Circuit Voltage (VOC): 25.94v
• Short Circuit Current (ISC): 8.74A
• Max. Power Voltage (MVP): 21.07v
• Max. Power Current (IMP): 7.59A
• Tolerance: +/- 5%
• Operating Temperature: -40C to 85C
• Net Weight: 6.9kg (blanket only)
• Gross Weight: 9.45kg (includes blanket, MPPT, cables and packaging)
• MPPT and cables 1.35kg
• MPPT Controller: 20AMP
• Unfolded Size: 160 x 63 x 0.5cm
• Folded Size: 64 x 40 x 3cm
• Front Pocket Size: 46 x 20 x 6cm
• Cell Type: Monocrystalline
• Efficiency %: 22%
• Number of Cells: 72 (2*9*4)
• Connector: Anderson Plug
• Output Cables: 2mm2
• ETFE coating rated IP65 (no ingress of dust, protected against water jets from any angle)
• Please note we do not recommend to leave out unattended in bad weather
